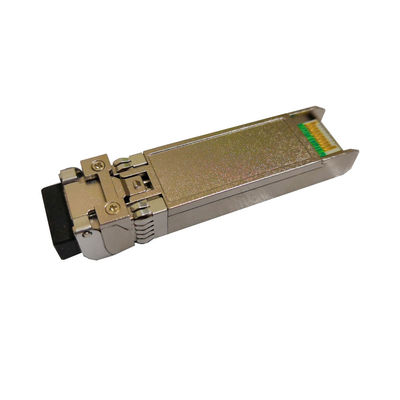

Product Details:
|
| Product Name: | 10G Dual Fiber SM 40km LC | Connector: | Dual LC Connector |
|---|---|---|---|
| Wavelength: | 1310nm Or 1550nm | Distance: | 40km |
| Transmitter: | Cooled EML Laser | Receiver: | PIN Photo Detector |
| High Light: | 40km Dual LC SFP+ Transceiver Module,Cooled EML Laser SFP+ Transceiver Module,40km mikrotik 10g sfp+ Module |
||
Miray's SFP-10GB-ER is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP+-10GB-ER converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
Storage Temperature |
TS |
-40 |
|
+85 |
°C |
|
Case Operating Temperature |
TA |
0 |
|
70 |
°C |
|
Maximum Supply Voltage |
Vcc |
-0.5 |
|
4 |
V |
|
Relative Humidity |
RH |
0 |
|
85 |
% |
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Center Wavelength |
λt |
1530 |
1550 |
1565 |
nm |
|
|
spectral width |
△λ |
|
|
0.3 |
nm |
|
|
Average Optical Power |
Pavg |
-1 |
|
+4 |
dBm |
1 |
|
Optical Power OMA |
Poma |
-2.1 |
|
|
dBm |
|
|
Laser Off Power |
Poff |
|
|
-30 |
dBm |
|
|
Extinction Ratio |
ER |
6 |
|
|
dB |
|
|
Transmitter Dispersion Penalty |
TDP |
|
|
3.0 |
dB |
2 |
|
Relative Intensity Noise |
Rin |
|
|
-128 |
dB/Hz |
3 |
|
Optical Return Loss Tolerance |
|
20 |
|
|
dB |
|
|
Receiver Section: |
||||||
|
Center Wavelength |
λr |
1260 |
|
1600 |
nm |
|
|
Receiver Sensitivity |
Sen |
|
|
-16 |
dBm |
4 |
|
Stressed Sensitivity (OMA) |
SenST |
|
|
-14 |
dBm |
4 |
|
Los Assert |
LOSA |
-27 |
|
- |
dBm |
|
|
Los Dessert |
LOSD |
|
|
-17 |
dBm |
|
|
Los Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
|
Overload |
Sat |
0 |
|
|
dBm |
5 |
|
Receiver Reflectance |
Rrx |
|
|
-26 |
dB |
|
